What is Nanolayer Coextrusion?

Nanolayer coextrusion is an advanced polymer film manufacturing process that arranges two or more commercially available polymers into dozens to thousands of precisely controlled layers, with individual layers as thin as 25 nanometers.

At these dimensions, nanoscale confinement fundamentally changes polymer behavior. For semi-crystalline polymers, individual layers below approximately 250 nanometers develop different crystallization behavior and morphology than the same materials in bulk. This transforms layer thickness, layer count, polymer selection, polymer ratio, and layer sequence into powerful engineering variables. Instead of waiting a decade for a new resin to obtain a new combination of properties, nanolayer coextrusion unlocks advanced performance using trusted polymers. Architecture, not chemistry.

Nanolayer Polymer Films: Bypassing the Resin Innovation Bottleneck

Traditional film development improves performance by changing the material through new resins, blends, coatings, or unproven chemistries that regulators have not finished evaluating. Peak Nano takes a different approach. Using nanolayer coextrusion, we engineer commercially available, multi-sourced polymers into precisely controlled nanoscale architectures.

Rather than relying on a new material to deliver new performance, nanolayer coextrusion starts with polymers the industry already produces at scale, sources from multiple suppliers, and trusts.

What changes is their geometry: layer thickness, layer count, sequence, and ratio become design variables rather than fixed properties of a purchased resin.

The performance is new. The materials are not.

How Nanolayering Works:
From Two Polymers to Dozens, Hundreds, or Thousands of Layers

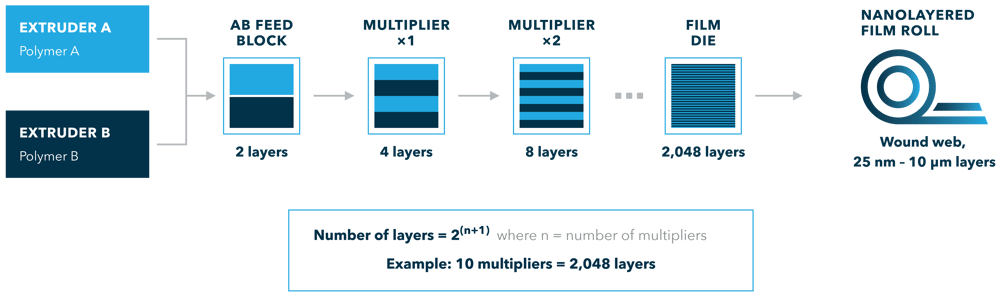

The process starts with two extruders and two polymers feeding into a shared feed block. From there, the stream passes through a series of layer-multiplying dies. Each multiplier splits the stream down the middle, lifts one half on top of the other, and merges them back into a single, doubled stream. Two layers become four, four become eight, and by the tenth multiplier stage, the film can carry more than 4,000 alternating layers without adding a new core extrusion machine.

The multiplier approach is what makes the layer count economical. A conventional multilayer line adds an extruder for every additional layer, which sets a practical ceiling around 11. A multiplier element instead splits the melt stream already inside the die and restacks it, doubling the layer count each time. Nine elements take a three-layer feed past 1,500 layers with no additional extruders at any stage.

2_nanoplex-layer-multiplication-process 1 (1)

Feedblock and Multiplier Approaches

Layered structures can be built simultaneously in a multilayered feedblock or sequentially through a series of multiplier dies. Peak Nano works primarily through the multiplier-die approach, which allows layer thickness, layer order, and material pairing to be set independently of the number of extruders on the line. The process itself is not exotic: flat cast layered film work began in the 1960s at Dow Chemical and DSM, and blown film has been reported more recently by Dow Chemical and Cryovac. What changed is tooling precision, which moved the layer count from tens to thousands and made economic scale-up possible.

M. Ponting, A. Hiltner, E. Baer, “Polymer Nanostructures by Forced Assembly: Process, Structure, Properties,” Macromolecular Symposia, 294(1), 19 to 32, 2010.

What Happens to Polymer Structure at the Nanoscale?

One process variable sits behind every property gain: interface density. A blend disperses two polymers into random domains with no continuous oriented interface. Traditional coextrusion produces five to 11 layers tens of microns thick. Microlayer coextrusion reaches tens of layers at single-digit microns. Nanolayer coextrusion reaches hundreds to thousands of layers with individual layers below 250 nanometers, where layer thickness crosses the length scale of crazes, cracks, crystals, and space charge. At that point, the film stops behaving like a stack of materials and starts behaving like a different material.

Layer Thickness and Layer Count Do Different Jobs

Thickness changes the physics: above roughly 250 nanometers, properties follow the rule of mixtures; below it, confinement forces a different crystal structure. Count compounds the result — every added interface interrupts defect propagation, distributes thermal stress, and breaks up shorting paths, which drives breakdown strength and lifetime in capacitor films and lengthens the diffusion path in barrier films.

How Nanolayering Changes Polymer Behavior

Nanolayer films rely on two related but distinct mechanisms that provide independent variables for architecture design:

Confinement

Confining a semi-crystalline polymer within nanoscale layers changes its crystallization behavior from random spherulites to flat, in-plane lamellar structures, significantly improving barrier performance and thermal stability.

Interfacial Effects

At nanoscale thicknesses, polymer interfaces account for a massive fraction of the overall structure. Extensive chain interpenetration across these interfaces provides robust adhesion without tie layers — even between dissimilar polymers that do not normally bond.

Conventional Multilayer Film vs. Polymer Blending vs. Nanolayer Coextrusion

Category	Conventional Multilayer Film	Polymer Blend	Nanolayer Coextrusion Technology
Design Approach	Limited to resin supplier menu; discrete layers	Polymers mixed within a common layer	Engineer any property by architecture, layer by layer
Time to New Capability	Two to 10 years for new resin R&D and qualification	Dependent on compatible blend ratios	Weeks to months, using off-the-shelf polymers
Material Requirements	Often requires specialty resin chemistry	Standard mixed polymer streams	Commercially available, multi-sourced polymers
Property Model	Rule of mixtures at best; averaged properties	Averaged or diluted properties	Confinement-driven synergy; exceeds sum of parts
Tie Layers / Adhesives	Often required for incompatible polymer pairs	Not applicable in the same way	Reduced or eliminated through nanoscale interlayer adhesion
Sustainability Lever	Constrained by resin chemistry and tie-layer contamination	Complex separation challenges	Downgauging and a path toward recycle-ready structures

Industrial Scalability Without New Supply Chain Risks

New performance usually arrives with new dependencies: a specialty resin from a single supplier, unverified chemistry, or an entirely new production line. Nanolayer coextrusion introduces none of them.

Existing Equipment

Layer-multiplication tooling retrofits onto standard extrusion lines rather than requiring core equipment overhauls.

Scalable Manufacturing

Proven architectures translate seamlessly from lab scale to production-scale extrusion.

Commercial Polymers

Multi-sourced, commercially available materials. No specialty resin required.

Established Supply Chains

Polymers are already produced at volume and qualified for industrial use.

Seven Mechanisms Behind Nanolayer Film Performance

Every property below comes from geometry rather than chemistry, and each one can be tuned independently by changing layer count, layer thickness, layer order, or material pairing.

Increased Interlayer Bonding

Interfacial area scales with layer count, so the same film thickness can carry hundreds of bonded interfaces instead of a handful. Chains interpenetrate and entangle across every interface while both melts are still hot in the die, and because each layer is only tens of nanometers thick, chains travel a very short distance to do it. Dissimilar polymers bond to each other without an adhesive tie layer.

Barrier Performance

Confinement forces crystals to orient in the plane of the film rather than growing as spherulites. Continuous, oriented, impermeable layers push gas and water molecules onto a long detour, so path length rather than new chemistry sets the improvement. A blend leaves its domains randomly oriented and offers short-circuit diffusion paths. Coextrusion aligns every layer.

Dielectric Performance

Alternating polymers with contrasting permittivity redistribute the local electric field instead of concentrating it. The high density of polymer-to-polymer interfaces introduces charge traps, so injected charge is captured at interfaces rather than travelling freely, which suppresses space-charge accumulation and delays breakdown. Interfaces also interrupt electrical trees, which have to re-nucleate layer by layer. Commercialized as NanoPlex™ LDF capacitor film, operating at 135 °C against 105 °C for standard BOPP-C.

Fracture Toughness

In a blend or a conventional coextruded film, a crack propagates through the material until it fractures. In a nanolayer film the crack reaches an interface, which deflects or stops it. The crack has to change direction, run along the interface, and re-initiate in the next layer, and each of those steps consumes fracture energy.

Ductility

Very thin layers suppress crazing, which raises elongation and toughness. Polymers that normally fail by brittle fracture shift toward ductile energy absorption.

Thermal Stability

Hundreds of alternating high-glass-transition layers act as a reinforcing thermal scaffold that holds temperature-dependent mechanical properties up as the film gets hot. Confined amorphous chains have reduced free volume and restricted mobility, which can raise the effective glass transition and stiffness.

Optical Control

Precisely controlled layer thickness sets how the film interacts with specific wavelengths, which supports reflective, filtering, and light-management structures.

What It Takes to Run Nanolayer Films in Production

Layer multiplication scales, but it does not tolerate loose process control. These are the parameters that decide whether an architecture becomes a product or stays a laboratory result.

Viscosity and rheological matching: Melt viscosities and temperatures have to stay matched across the processing window. Severe mismatch causes flow instability, layer breakup, and uneven distribution at high multiplication stages.
Thermal control: Uniform temperature across the multiplier stack prevents localized degradation and differential melt flow.
Width uniformity: Managing edge effects and holding layer thickness distribution across a wide production die is what delivers consistent performance from core to edge.
Layer integrity across the web: Barrier and dielectric performance only hold if every layer holds. Peak Nano controls uniformity across the full film width, verified by cross-sectional imaging.

Atomic force microscopy of Peak Nano films shows the same process producing very different architectures: a three-layer film with individual layers near 8 microns, and a 4,097-layer film with individual layers near 30 nanometers.

Capability From R&D to Production

Peak Nano runs R&D, pilot, and production-scale nanolayer lines in Valley View, Ohio.

Throughput: 1 to 8 lb/hr at R&D, 5 to 80 lb/hr at pilot, 30 to 150 lb/hr in production.
Layer count: 1 to 4,097 at every scale.
Film thickness: 6 to 500 micron at every scale.
Film width: 3 to 20 in at R&D, 20 to 32 in at pilot, 36 in in production.
Maximum melt temperature: 325 °C at every scale.

Business Outcomes

Cost Efficiency: Reduce total material use or decrease reliance on expensive high-barrier/specialty resins to hit performance targets.

System-Level Savings High-temperature dielectric films enable smaller capacitors, reduced copper use, smaller housings, and less cooling requirements.

Longer Service Life Lower internal heat generation and enhanced stress resistance extend component lifespans and reduce warranty exposure.

Future-Proofing & Regulatory Flexibility Rearrange already-compliant materials into advanced architectures ahead of tightening material regulations.

Supply-Chain Security U.S.-based development and manufacturing utilizing multi-sourced commercial polymers.

Dielectric Films & Custom Film Development

Nanolayer coextrusion is the technology.
Two things are built on it, and which one fits depends on what you need and whether that film already exists.

Dielectric Films
(NanoPlex HDC & NanoPlex LDF)

Qualified capacitor films available in the market today, tuned for high energy density and high-temperature operation.

Custom Polymer Film Development
(Films as a Service)

When your exact target structure does not exist yet, Peak's scientists design, extrude, and test a custom architecture around your performance target and materials.

Frequently Asked Questions (FAQs) About Nanolayer Coextrusion

Conventional coextrusion typically relies on 2 to 11 layers, often requiring an individual extruder for every added layer and adhesive tie-layers to bond incompatible polymers. In contrast, Peak Nano's nanolayer coextrusion uses a shared feed block and a series of layer-multiplying dies to exponentially split and recombine polymer streams — producing thousands of continuous layers (each as thin as 25 nanometers) using only two primary extruders. This eliminates tie-layers, reduces supply chain complexity, and unlocks confinement-driven performance.

Polymer blending mixes polymers into a single shared phase, resulting in random, discontinuous droplet domains with little architectural control. Nanolayer coextrusion organizes polymers into continuous, precisely controlled geometric layers. Below the confinement threshold, this precise architecture produces synergistic physical properties that break the traditional "rule of mixtures," delivering performance that neither polymer can achieve independently.

No. Layer-multiplication tooling (feed blocks and multiplier stacks) is engineered to retrofit directly onto standard industrial cast-film extrusion lines, melt pumps, and downstream orientation equipment. Manufacturers can scale production using existing core extrusion assets rather than investing in entirely new production infrastructure.

Nanolayer polymer films are manufactured at scale using a continuous layer-multiplication extrusion process rather than adding a separate extruder for every layer. The process begins with two standard extruders feeding distinct polymer streams into a shared feed block. This combined stream then passes through a series of precision layer-multiplying dies that repeatedly split the flow down the middle, stack one half over the other, and recombine them. After approximately ten multiplication stages, the film contains more than 2,000 continuous alternating layers. Because this tooling retrofits directly onto standard industrial cast-film lines, melt pumps, and orientation equipment, manufacturers can produce nanolayer films at industrial volume using existing core extrusion assets.

The primary differences lie in layer scale, structural physics, and material behavior.

Multi-layer coextrusion (conventional multilayer films) typically utilizes 2 to 11 discrete layers with individual thicknesses in the micrometer range. These structures strictly follow the "rule of mixtures," where final film properties represent a simple weighted average of the component resins.
Nanolayer coextrusion drives individual layer thickness down below approximately 250 nanometers (reaching tens of nanometers). At this scale, nanoscale confinement alters semi-crystalline polymer morphology, creating ordered in-plane lamellar structures and massive interfacial surface areas. This unlocks synergistic physical properties—such as heightened barrier and dielectric strength—that conventional micro-layer structures cannot achieve.

Nanoscale confinement improves dielectric breakdown strength by fundamentally altering polymer crystal structure and creating physical barriers to electrical failure. When semi-crystalline polymers are confined to individual layers under ~250 nanometers, they form ordered, flat lamellar structures instead of random bulk spherulites. In high-voltage capacitor applications, these dense, alternating nanolayer interfaces act as charge-trapping zones and physical barriers that disrupt electrical tree propagation, arresting microscopic discharge paths before they can cascade into catastrophic dielectric breakdown.

Nanolayer coextrusion gives packaging engineers another design lever to pursue both barrier performance and recyclability targets. By precisely controlling layer thickness, material ratios, and overall film architecture, Peak Nano can explore structures that use less barrier material while maintaining required performance. However, nanolayering alone does not make a film recyclable. The complete structure—including barrier resins, tie layers, and other components—must be designed, tested, and assessed against the applicable recycling guidelines in its target market.

Layer-multiplying feedblocks scale economically, but they require close viscosity and rheological matching between polymer streams, uniform thermal control across the multiplier stack, and careful management of layer thickness distribution across wide production dies. Peak Nano treats each of these as a process control parameter rather than a constraint on design.
