Peak Nano & E&P Technologies Partnership

Engineered to Scale, Qualified for Deployment

As fusion scales toward repetitive operation, reliable pulsed power becomes mission-critical. Capacitors sit at the center of that challenge.

Peak Nano and E&P Technologies have built a new model for pulsed power innovation, pairing advanced dielectric materials with precision manufacturing.

E&P’s next-generation high-energy-density capacitors, powered by Peak Nano’s NanoPlex™ HDC dielectric film platform, accelerate development and strengthen the domestic industrial base for high-performance energy systems.

New Film Solutions in Weeks, Not Years

Peak Technology Center

The Peak Technology Center is where all NanoPlex™ intellectual property is developed, prototyped, and validated. We turn nanolayer film concepts into production-ready films on timelines that traditional polymer development can’t match.

Request a Discovery Call
nanoplex-logo

The NanoPlex Advantage

Traditional film engineering forces you into trade-offs:

    • Single-polymer films: Stuck with one material's limitations.

    • Polymer blends: Materials compete instead of complement.

    • Multi-layer films: Tie-layers pile on cost, complexity, and thickness, and are capped at a handful of discrete layers.

NanoPlex™ nanolayer coextrusion removes these constraints entirely. We combine two or more existing polymers into hundreds or even thousands of precisely controlled layers, each as thin as 30 nanometers. The layer architecture, including order, thickness ratio, and composition, is fully customizable.

The result: Dielectric strength, thermal stability, mechanical toughness, barrier performance, and optical properties can all be fine-tuned layer by layer using proven commercial polymers already qualified and available today. No new base materials to develop, no multi-year waiting game, no nine-figure R&D programs.

Technology Center Capabilities

Three Integrated Disciplines

We operate across three core areas to compress development timelines and eliminate the handoffs that slow traditional film programs.

1

Polymer Analysis & Development Tools

AI-enabled formulation tools built on decades of nanolayered materials research and science. Spectroscopy and analysis characterize film composition, molecular structure, and material properties at the nanoscale. Formulation decisions are data-driven from the start.

2

Formulation, Prototyping & Manufacturing

Five dedicated extrusion lines produce nanolayered films with up to 4,000+ layers in thicknesses from 2.5 to 400 microns, at temperatures up to 325°C. Lines are configured for rapid iteration, with fast transitions between formulations, layer counts, and material combinations.

3

Capacitor Reference Design

In-house capacitor prototyping and testing take NanoPlex film directly from production to prototype hardware. We build reference designs, run lifetime testing under real operating conditions, and deliver the engineering guidance your team needs to adapt NanoPlex capacitor film into high-temperature and high-energy-density capacitor devices.

Rapid Film Spectrum Prototyping

When we identify a promising polymer combination, we don't run one test and wait. We produce a full spectrum of prototype films across every ratio, from 80/20 to 20/80. You receive a complete set of test samples in weeks, allowing you to pinpoint the exact layer composition that delivers the properties your application requires. This is how we compress years of polymer R&D into weeks of targeted iteration.

From First Article to Production Quantities

Our expertise in biaxial orientation is purpose-built for rapid nanolayer film development. In combination with our vertically integrated co-extrusion film capabilities, we can manage biaxial development projects from early-stage R&D and material screening through prototype runs to production quantities of 100 lbs+, all on a single, reconfigurable platform.

325°C Max
Extrusion Temperature

High-temperature polymer processing for advanced systems

2.5–400 μm
Film Thickness Range

Flexible targeting across ultra-thin to standard gauges

4,000+
Nanolayers Per Film

Precisely engineered, application-specific

4
Multi-Material Extruders

Designed for diverse polymer combinations

Film Extruders

¾" Extruders

R&D Line

Rate: 1–8 lb/hr

Layers: 1–4,097

Materials: 3

Skin Layer:  Yes

Thickness: 6–400 μm

Film Width: 3–20 in

Max Temp: 325°C

1"–1¼" Extruders

Pilot Line

Rate: 5–80 lb/hr

Layers: 1–4,097

Materials: 7

Skin Layer: Yes

Thickness: 6–400 μm

Film Width: 20–32 in

Max Temp: 325°C

1¾"–2" Extruders

Production Lines

Rate: 30–150 lb/hr

Layers: 1–4,097

Materials: 3

Skin Layer:  Yes

Thickness: 6–400 μm

Film Width: 18-36 in

Max Temp: 325°C

Purpose-Built Facilities

75,000 Sq. Ft. of Dedicated Film and Capacitor Infrastructure

Our Ohio facilities house extrusion lines, clean rooms, and labs for metrology, diamond turning, dielectric film characterization, and capacitor prototyping. Everything needed to move from first extrusion to validated hardware, without a single external handoff.

0 Co-Extrusion Lines Dedicated nanolayer film production
0k Sq. Ft. Manufacturing and metrology space
0k Sq. Ft. Clean Room Including ISO 7 certified space
0% U.S.-Based Engineering, IP, and manufacturing
Nanoplex-FAAS-logo-color

NanoPlex Films as a Service (FaaS)

Need a custom nanolayer film but don't want to build and operate your own extrusion line?

NanoPlex Films as a Service delivers full end-to-end film development, prototyping, and low-rate production. Skip the polymer waiting game and cut development costs dramatically. Get rapid iterations with extensive customization; all on Peak Nano's 100% U.S.-based infrastructure.

Learn more about FaaS.

From Concept to Production

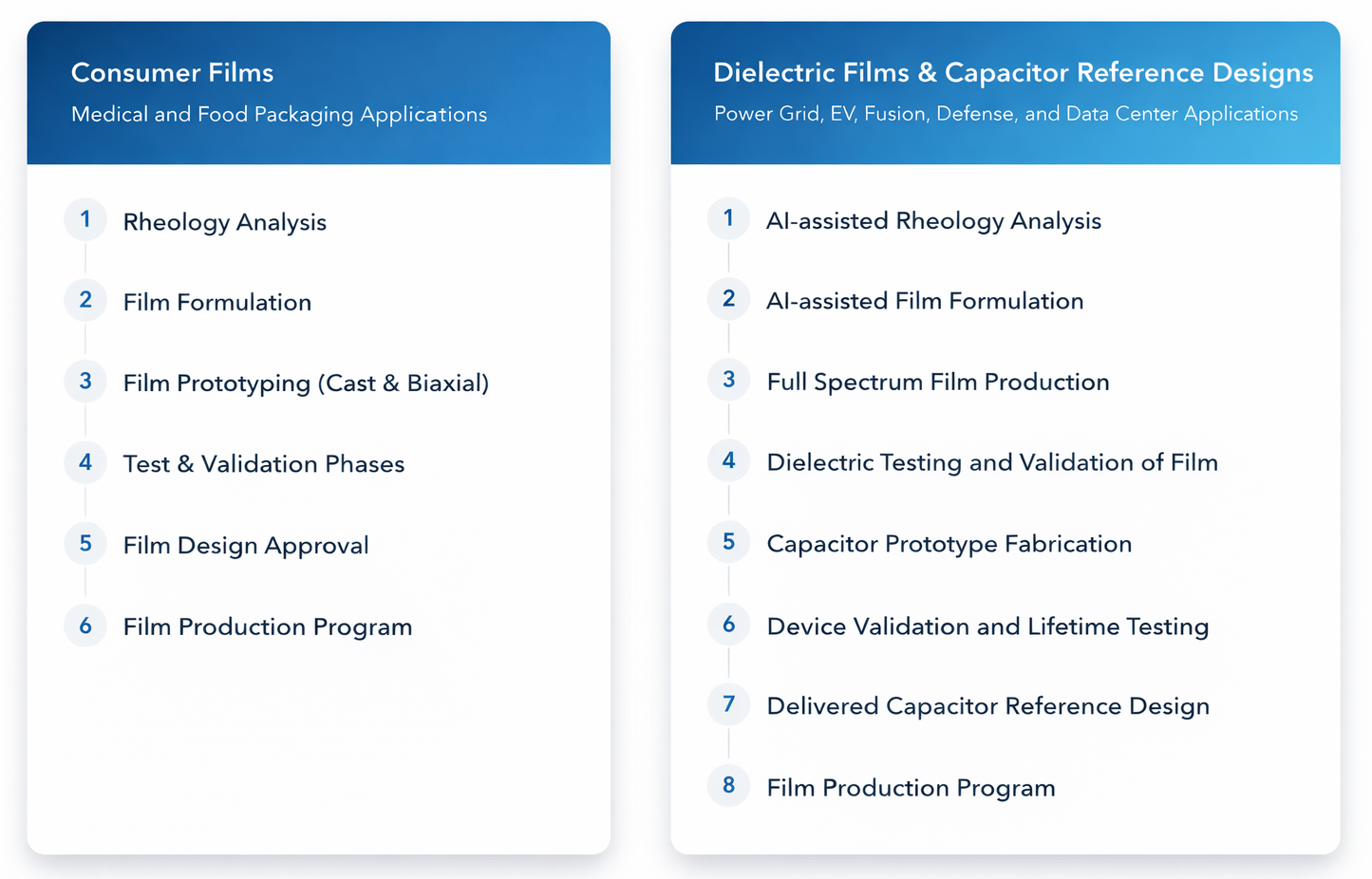

Two Film Development Tracks

Whether your application is a consumer film or a high-performance dielectric for capacitor systems, we run the full development process in-house.

Informational design for film applications-1

See what the Technology Center can do for you

Tell us about your application. Our engineering team will show you how we compress development timelines and review NanoPlex film solutions for your specific requirements.

Request a discovery call today.
