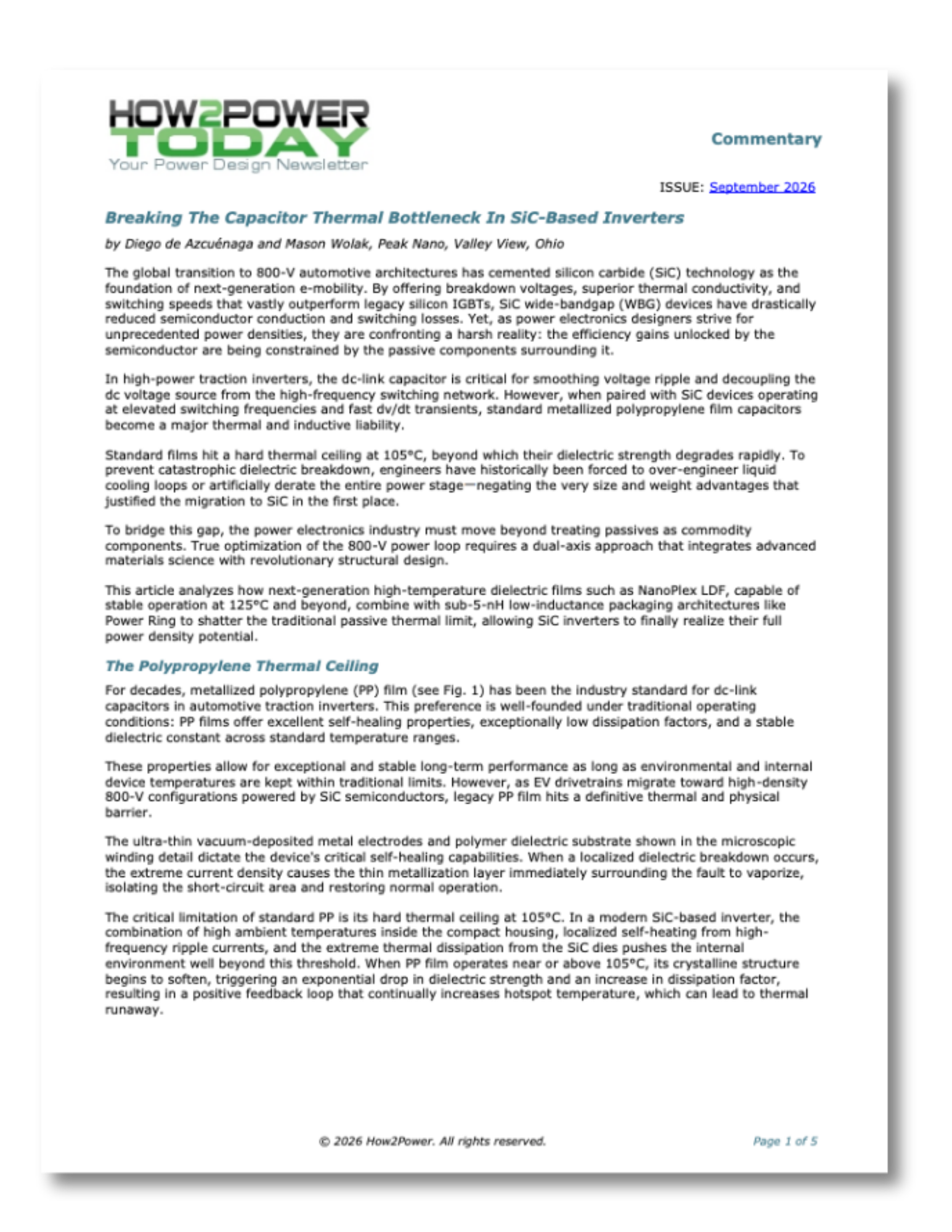

Breaking the Capacitor Thermal Bottleneck in SiC Inverters

Published on How2Power

Standard metallized polypropylene dc-link capacitors hit a hard thermal ceiling at 105°C, forcing EV designers into bulky cooling loops or oversized capacitor banks that undercut the size and weight gains SiC was supposed to deliver. This commentary, co-authored by Peak Nano and Advanced Conversion, explains how NanoPlex LDF dielectric film, stable at 125°C and beyond, paired with Power Ring's sub-5-nH packaging, removes that ceiling entirely.

WHAT'S INSIDE:

• Why standard polypropylene film hits a 105°C thermal ceiling and forces up to 50% voltage derating
• How parasitic inductance and ESR create voltage spikes that threaten SiC MOSFETs
• Power Ring's concentric ribbon metallization and opposing current loops, driving inductance below 5 nH
• The molecular structure behind NanoPlex LDF's dielectric stability at 125°C-135°C
• A side-by-side comparison table: standard PP vs. NanoPlex LDF on operating temperature, dissipation factor, and voltage derating
